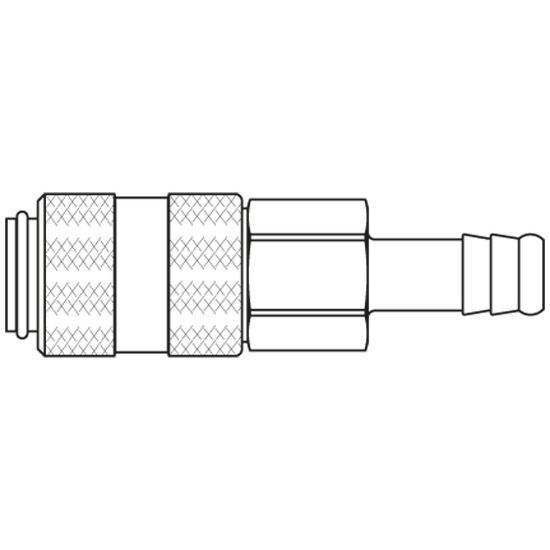

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Premium Quick Coupling with English Industrial Profile, Series 19 - 19KATF10MPX

Name: Premium Quick Coupling with English Industrial Profile, Series 19 - 19KATF10MPX
SKU: 19KATF10MPX
Availability: OutOfStock

Premium quick coupling with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with English industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 19KATF10MPX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Materials of Construction	Brass	Maximum Operating Pressure	35 bar
Version	Single Shut-Off	Valve Included	Yes
Length	76 mm	Outside Diameter	23 mm
Hex Size	19 mm	Diameter	5,5 nom
Flow Rate	850 (Air), 12 (Water) L/min
Type	Coupling	Connection Type	Hose Barb
Connection Thread Size (inch)	na	Hose I.D.	10
