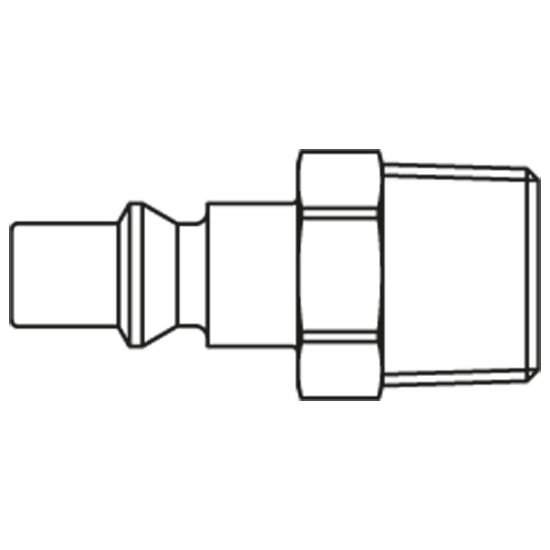

Premium Quick Coupling with ARO Profile, Series 22 - 22SFAW17MXN

Name: Premium Quick Coupling with ARO Profile, Series 22 - 22SFAW17MXN
SKU: 22SFAW17MXN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ARO profile. Available made of brass/steel.

Availability:

Backordered

SKU: 22SFAW17MXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Maximum Operating Pressure	35 bar	Version	Single Shut-Off
Valve Included	No	Minimum Operating Temperature	-25 °C
Hex Size	17 mm	Diameter	5,5 nom
Outside Diameter	na	Length	41 mm
Maximum Operating Temperature	240 °C	Flow Rate	800 (Air), 15 (Water) L/min
Seal Material	without
Type	Plug	Hose I.D.	na
Connection Thread Size (inch)	3/8	Material	Brass nickel plated
Connection Type	Male Thread - parallel
