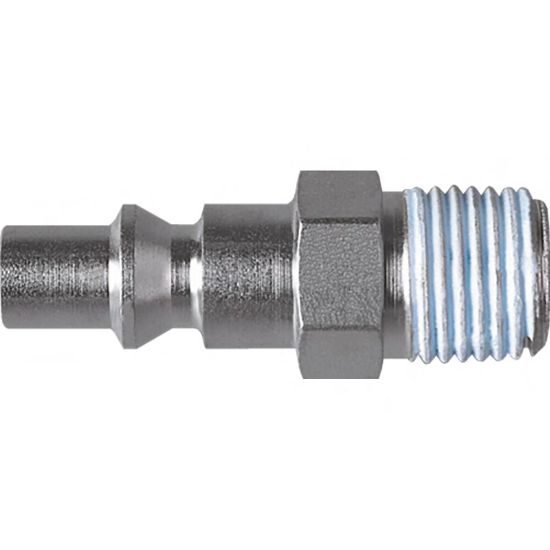

Premium Quick Coupling with ARO Profile, Series 22 - 22SFAK10SXN

Name: Premium Quick Coupling with ARO Profile, Series 22 - 22SFAK10SXN
SKU: 22SFAK10SXN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ARO profile. Available made of brass/steel.

Availability:

Backordered

SKU: 22SFAK10SXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	na	Maximum Operating Pressure	35 bar
Version	Single Shut-Off	Valve Included	No
Diameter	5,5 nom	Hex Size	12 mm
Outside Diameter	na	Length	35 mm
Flow Rate	800 L/min
Type	Plug	Hose I.D.	na
Connection Thread Size (inch)	1/8	Connection Type	Male Thread - tapered
Material	Steel nickel plated
