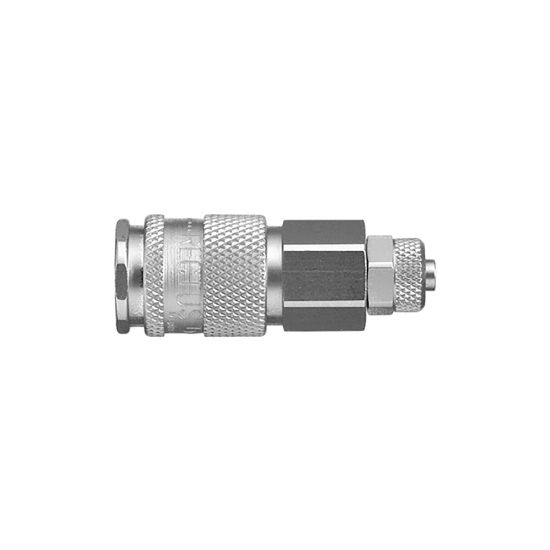

Premium Quick Coupling with ARO Profile, Series 22 - 22KAKO10MPN

Name: Premium Quick Coupling with ARO Profile, Series 22 - 22KAKO10MPN
SKU: 22KAKO10MPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ARO profile. Available made of brass/steel.

Availability:

Backordered

SKU: 22KAKO10MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	NBR	Maximum Operating Pressure	35 bar
Version	Single Shut-Off	Valve Included	Yes
Outside Diameter	23 mm	Hex Size	19 mm
Diameter	5,5 nom	Length	65 mm
Flow Rate	800 L/min
Type	Coupling	Connection Thread Size (inch)	na
Material	Brass nickel plated	Connection Type	With Plastic Hose Connection
Hose I.D.	8x10
