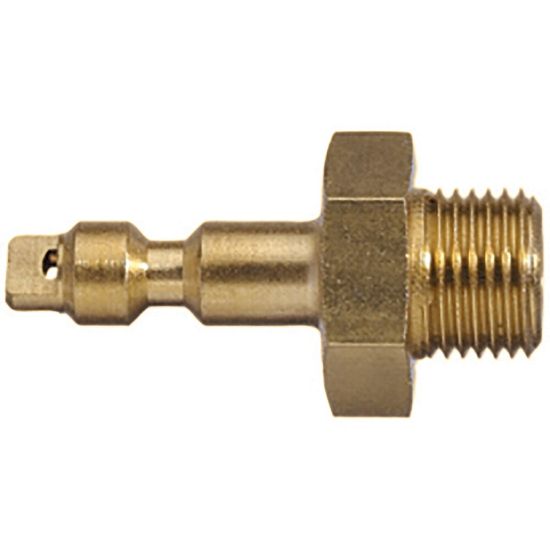

Premium Quick Coupling, Series 50 - 50SFAW10MXN

Name: Premium Quick Coupling, Series 50 - 50SFAW10MXN
SKU: 50SFAW10MXN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 2.5 for pneumatic and fluid handling applications up to 35 bar. Available made of brass.

Availability:

Backordered

SKU: 50SFAW10MXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	na
Maximum Operating Pressure	35 bar	Length	30 mm
Version	Single Shut-Off	Valve Included	No
Flow Rate	160 L/min	Hex Size	14 mm
Outside Diameter	na	Diameter	2,5 nom
Type	Plug	Material	Brass nickel plated
Connection Thread Size (inch)	1/8	Connection Type	Male Thread - parallel
Hose I.D. (mm)	na
