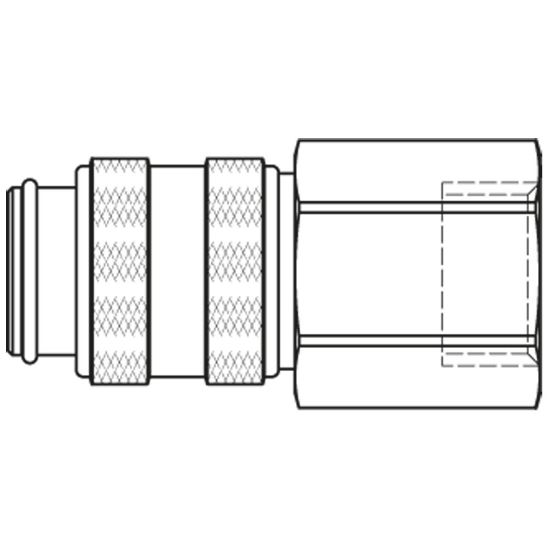

Premium Quick Coupling, Series 50 - 50KAIW17MPXS

Name: Premium Quick Coupling, Series 50 - 50KAIW17MPXS
SKU: 50KAIW17MPXS
Availability: OutOfStock

Premium quick coupling system with nominal diameter 2.5 for pneumatic and fluid handling applications up to 35 bar. Available made of brass.

Availability:

Backordered

SKU: 50KAIW17MPXS

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Maximum Operating Pressure	35 bar	Version	Single Shut-Off
Valve Included	Yes	Length	38 mm
Outside Diameter	17 mm	Flow Rate	120 (air), 1.8 (water) L/min
Diameter	2,5 nom	Hex Size	n/a mm
Type	Coupling	Material	Brass
Hose I.D. (mm)	n/a	Connection Type	Female Thread - parallel
Connection Thread Size (inch)	3/32
