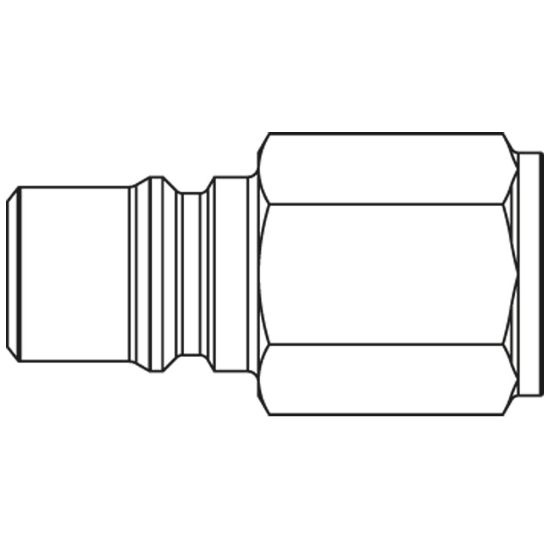

Premium Quick Coupling - Scandinavian Profile - 1900 Series - 1900SFIW21MXC

Name: Premium Quick Coupling - Scandinavian Profile - 1900 Series - 1900SFIW21MXC
SKU: 1900SFIW21MXC
Availability: OutOfStock

Parker quick coupling system Premium Plus made of brass with scandinavian profile and nominal diameter 12.4 for applications up to 50 bar!

Availability:

Backordered

SKU: 1900SFIW21MXC

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	na	Maximum Operating Pressure	50 bar
Valve Included	No	Division	High Pressure Connectors Europe Division
Outside Diameter	na	Hex Size	27 mm
Flow Rate	3500 L/min	Diameter	12,4 nom
Materials of Construction	Brass nickel and chrome plated
Type	Plug	Length (mm)	60
Connection Type	Female Thread	Version	Single Shut-Off
Connection Thread Size (inch)	1/2
