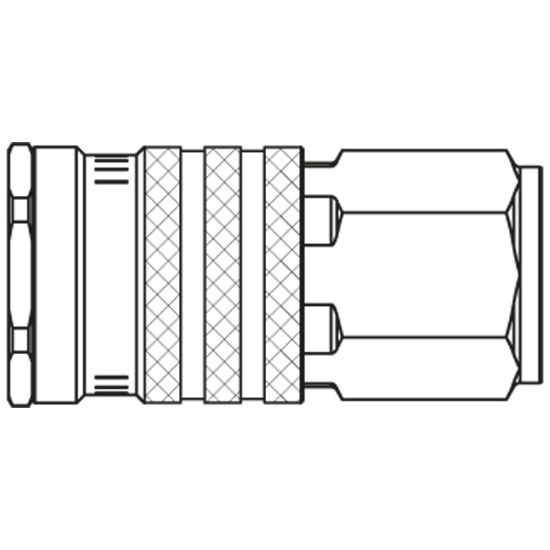

Premium Quick Coupling - Scandinavian Profile - 1900 Series - 1900KBIW21MPN

Name: Premium Quick Coupling - Scandinavian Profile - 1900 Series - 1900KBIW21MPN
SKU: 1900KBIW21MPN
Availability: OutOfStock

Parker quick coupling system Premium Plus made of brass with scandinavian profile and nominal diameter 12.4 for applications up to 50 bar!

Availability:

Backordered

SKU: 1900KBIW21MPN

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	NBR	Maximum Operating Pressure	50 bar
Valve Included	Yes	Division	High Pressure Connectors Europe Division
Materials of Construction	Brass nickel plated	Hex Size	27 mm
Diameter	12,4 nom	Flow Rate	2800 L/min
Outside Diameter	33 mm
Type	Coupling	Connection Type	Female Thread
Version	Double Shut-Off	Connection Thread Size (inch)	1/2
Length (mm)	67
