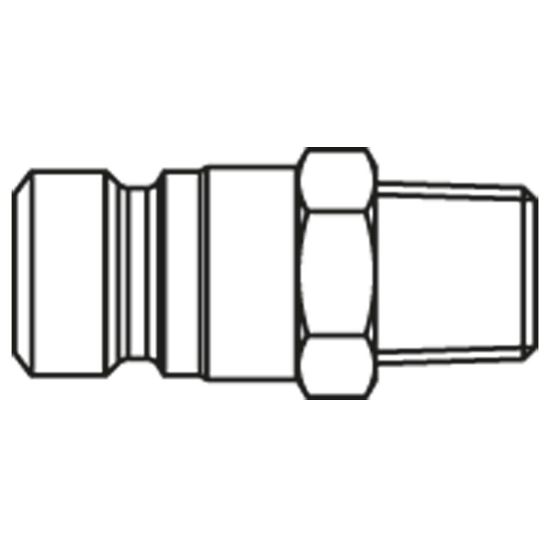

Premium Quick Coupling - Scandinavian Profile - 1800 Series - 1800SFAW17EXX

Name: Premium Quick Coupling - Scandinavian Profile - 1800 Series - 1800SFAW17EXX
SKU: 1800SFAW17EXX
Availability: OutOfStock

Parker quick coupling system Premium Plus with scandinavian profile and nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar!

Availability:

Backordered

SKU: 1800SFAW17EXX

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	n/a	Maximum Operating Pressure	35 bar
Valve Included	No	Outside Diameter	n/a
Minimum Operating Temperature	-25 °C	Division	High Pressure Connectors Europe Division
Maximum Operating Temperature	200 °C	Hex Size	19 mm
Length	36 mm	Diameter	10 nom
Flow Rate	2300 L/min
Type	Plug	Hose I.D.	na
Connection Thread Size (inch)	3/8	Connection Type	Male Thread - parallel
Version	Single Shut-Off	Material	AISI 316
