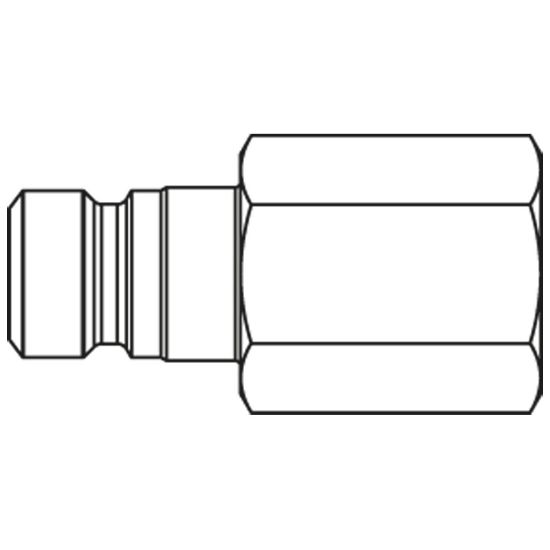

Premium Quick Coupling - Scandinavian Profile - 1800 Series - 1800SBAN21MPC

Name: Premium Quick Coupling - Scandinavian Profile - 1800 Series - 1800SBAN21MPC
SKU: 1800SBAN21MPC
Availability: OutOfStock

Parker quick coupling system Premium Plus with scandinavian profile and nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar!

Availability:

Backordered

SKU: 1800SBAN21MPC

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	NBR	Maximum Operating Pressure	50 bar
Valve Included	Yes	Outside Diameter	n/a
Division	High Pressure Connectors Europe Division	Length	47 mm
Hex Size	22 mm	Diameter	10 nom
Flow Rate	1650 L/min
Type	Plug	Hose I.D.	na
Version	Double Shut-Off	Connection Thread Size (inch)	1/2
Connection Type	Male Thread - tapered	Material	Brass chrome plated
