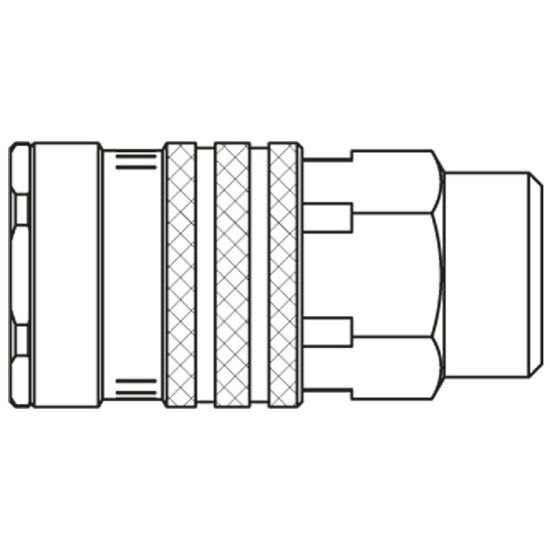

Premium Quick Coupling - Scandinavian Profile - 1800 Series - 1800KBAW21MPN

Name: Premium Quick Coupling - Scandinavian Profile - 1800 Series - 1800KBAW21MPN
SKU: 1800KBAW21MPN
Availability: OutOfStock

Parker quick coupling system Premium Plus with scandinavian profile and nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar!

Availability:

Backordered

SKU: 1800KBAW21MPN

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	NBR	Maximum Operating Pressure	50 bar
Valve Included	Yes	Division	High Pressure Connectors Europe Division
Length	54 mm	Outside Diameter	27 mm
Hex Size	22 mm	Diameter	10 nom
Flow Rate	1650 L/min
Type	Coupling	Hose I.D.	na
Material	Brass nickel plated	Connection Type	Male Thread - parallel
Version	Double Shut-Off	Connection Thread Size (inch)	1/2
