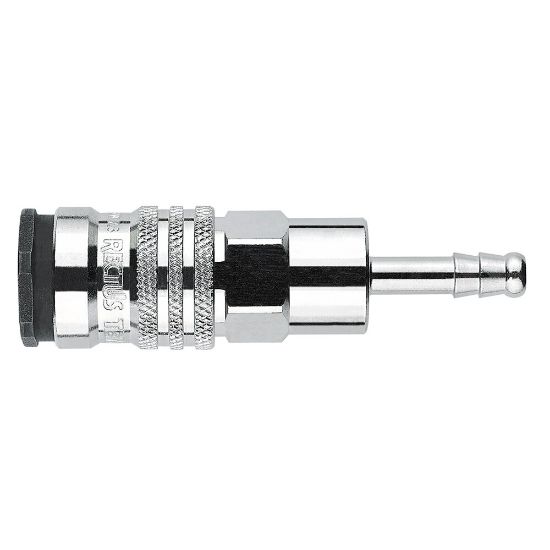

Premium Plus Quick Coupling with ISO 6150 B Profile, Series 1400 - 1400KATF06SPN

Name: Premium Plus Quick Coupling with ISO 6150 B Profile, Series 1400 - 1400KATF06SPN
SKU: 1400KATF06SPN
Availability: OutOfStock

Premium plus quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile. Available made of brass/steel.

Availability:

Backordered

SKU: 1400KATF06SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Maximum Operating Pressure	35 bar	Version	Single Shut-Off
Valve Included	Yes	Outside Diameter	23 mm
Hex Size	19 mm	Diameter	5,5 nom
Materials of Construction	Brass nickel plated	Length	80 mm
Flow Rate	940 L/min
Type	Coupling	Connection Type	Hose Barb
Connection Thread Size (inch)	na	Hose I.D.	6
