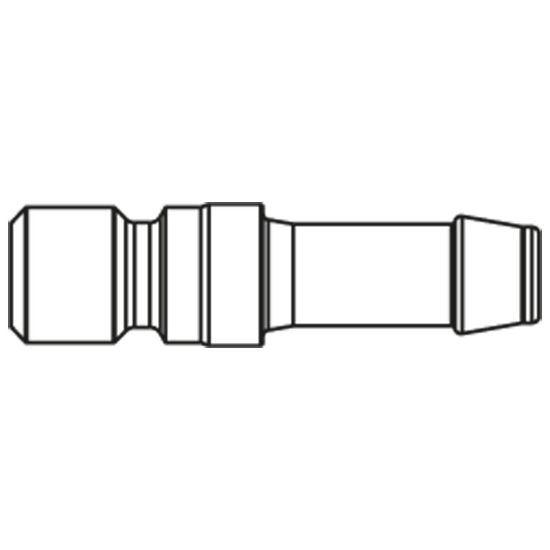

Premium Plus Quick Coupling - Scandinavian Profile - Series 1300 - 1300SFTF06SXZ

Name: Premium Plus Quick Coupling - Scandinavian Profile - Series 1300 - 1300SFTF06SXZ
SKU: 1300SFTF06SXZ
Availability: OutOfStock

Brass, steel or stainless steel Premium plus quick coupling system with nominal diameter 7.4 and Scandinavian profile for applications up to 35 bar.

Availability:

Backordered

SKU: 1300SFTF06SXZ

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	n/a	Maximum Operating Pressure	35 bar
Hex Size	n/a	Valve Included	No
Outside Diameter	n/a	Division	High Pressure Connectors Europe Division
Flow Rate	1150 L/min	Diameter	7,4 nom
Type	Plug	Connection Type	Hose Barb
Connection Thread Size (inch)	na	Hose I.D.	6
Material	Brass nickel plated	Version	Single Shut-Off
Length (mm)	44
