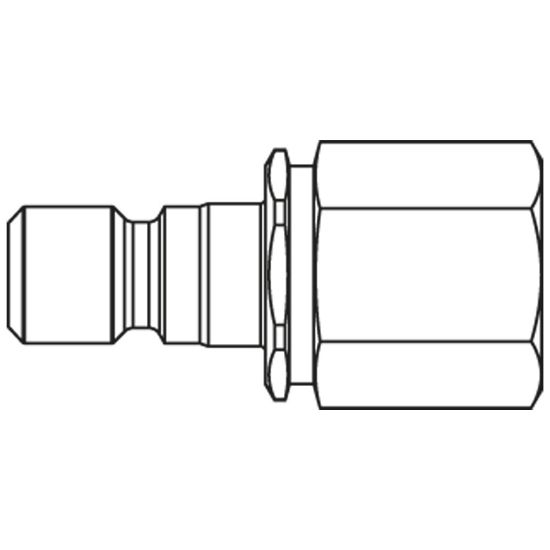

Premium Plus Quick Coupling - Scandinavian Profile - Series 1300 - 1300SBIW13EVX

Name: Premium Plus Quick Coupling - Scandinavian Profile - Series 1300 - 1300SBIW13EVX
SKU: 1300SBIW13EVX
Availability: OutOfStock

Brass, steel or stainless steel Premium plus quick coupling system with nominal diameter 7.4 and Scandinavian profile for applications up to 35 bar.

Availability:

Backordered

SKU: 1300SBIW13EVX

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	50 bar	Valve Included	Yes
Outside Diameter	n/a	Minimum Operating Temperature	-25 °C
Seal Material	FKM	Division	High Pressure Connectors Europe Division
Maximum Operating Temperature	200 °C	Flow Rate	1150 L/min
Hex Size	18 mm	Diameter	7,4 nom
Type	Coupling	Hose I.D.	na
Connection Thread Size (inch)	1/4	Connection Type	Female Thread - parallel
Version	Double Shut-Off	Material	AISI 316
Length (mm)	44
