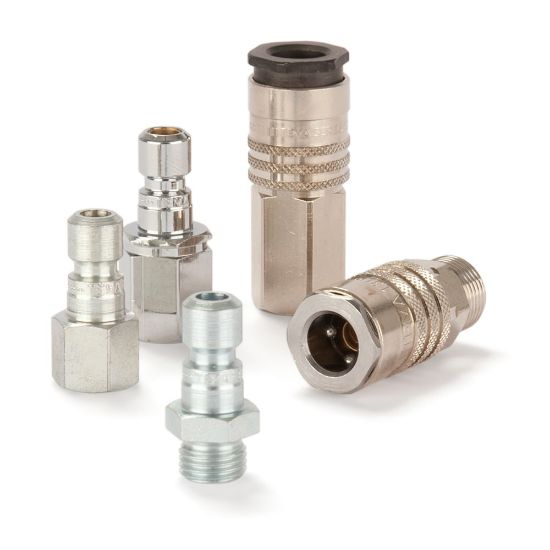

Premium Plus Quick Coupling - Scandinavian Profile - Series 1300 - 1300-QC

Name: Premium Plus Quick Coupling - Scandinavian Profile - Series 1300 - 1300-QC
SKU: 1300-QC
Availability: OutOfStock

Brass, steel or stainless steel Premium plus quick coupling system with nominal diameter 7.4 and Scandinavian profile for applications up to 35 bar.

Availability:

Backordered

SKU: 1300-QC

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	NBR	Maximum Operating Pressure	35 bar
Valve Included	Yes	Division	High Pressure Connectors Europe Division
Outside Diameter	22 mm	Flow Rate	1150 L/min
Hex Size	18 mm	Diameter	7,4 nom
Type	Coupling	Hose I.D.	na
Connection Thread Size (inch)	1/4	Material	Brass nickel plated
Connection Type	Female Thread - parallel	Version	Single Shut-Off
Length (mm)	49
