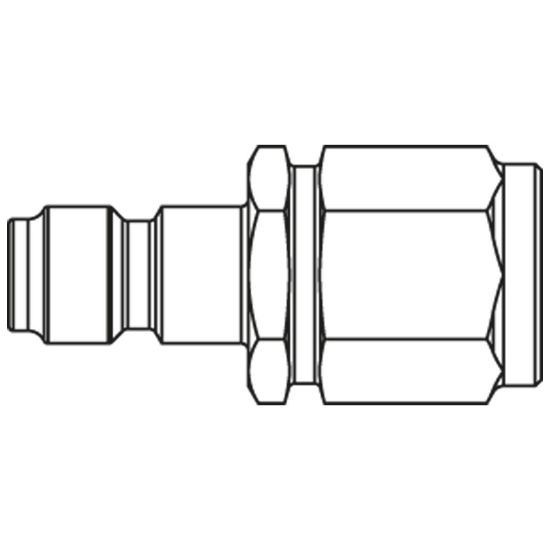

Premium Plus Quick Coupling - Scandinavian Profile - Series 1100 - 1100SBIW10MPC

Name: Premium Plus Quick Coupling - Scandinavian Profile - Series 1100 - 1100SBIW10MPC
SKU: 1100SBIW10MPC
Availability: OutOfStock

Brass or steel Premium plus quick coupling system with nominal diameter 5.5 and Scandinavian profile for applications up to 30 bar.

Availability:

Backordered

SKU: 1100SBIW10MPC

Qty:

Products specifications

Attribute name	Attribute value
Division	High Pressure Connectors Europe Division	Maximum Operating Pressure	20 bar
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Length	36 mm	Diameter	5,5 nom
Hex Size	15 mm	Flow Rate	430 L/min
Seal Material	NBR	Valve Included	Yes
Outside Diameter	na	Materials of Construction	Brass nickel plated
Type	Plug	Version	Double Shut-Off
Hose I.D.	na	Connection Type	Female Thread - parallel
Connection Thread Size (inch)	1/8
