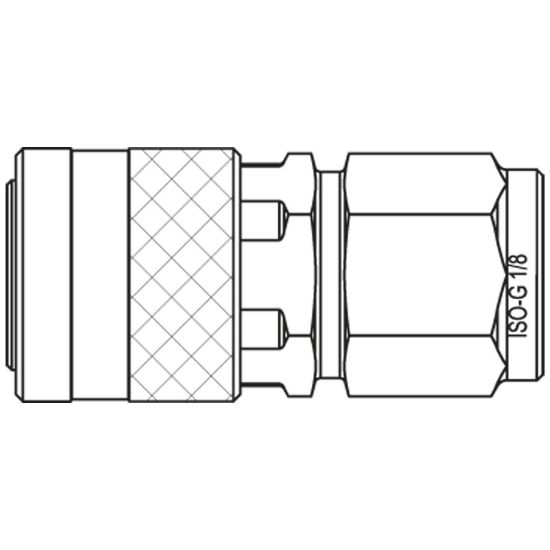

Premium Plus Quick Coupling - Scandinavian Profile - Series 1100 - 1100KAIW10MPC

Name: Premium Plus Quick Coupling - Scandinavian Profile - Series 1100 - 1100KAIW10MPC
SKU: 1100KAIW10MPC
Availability: OutOfStock

Brass or steel Premium plus quick coupling system with nominal diameter 5.5 and Scandinavian profile for applications up to 30 bar.

Availability:

Backordered

SKU: 1100KAIW10MPC

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	NBR	Valve Included	Yes
Division	High Pressure Connectors Europe Division	Outside Diameter	18 mm
Hex Size	15 mm	Flow Rate	580 L/min
Maximum Operating Pressure	30 bar	Length	38 mm
Diameter	5,5 nom	Materials of Construction	Brass nickel plated
Type	Coupling	Hose I.D.	na
Connection Thread Size (inch)	1/8	Connection Type	Female Thread - parallel
Version	Single Shut-Off
