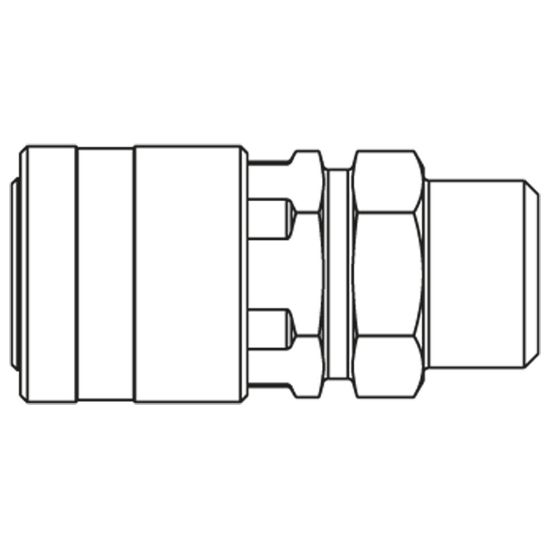

Premium Plus Quick Coupling - Scandinavian Profile - Series 1100 - 1100KAAW13MPC

Name: Premium Plus Quick Coupling - Scandinavian Profile - Series 1100 - 1100KAAW13MPC
SKU: 1100KAAW13MPC
Availability: OutOfStock

Brass or steel Premium plus quick coupling system with nominal diameter 5.5 and Scandinavian profile for applications up to 30 bar.

Availability:

Backordered

SKU: 1100KAAW13MPC

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	NBR	Valve Included	Yes
Division	High Pressure Connectors Europe Division	Length	37 mm
Outside Diameter	18 mm	Hex Size	15 mm
Flow Rate	580 L/min	Maximum Operating Pressure	30 bar
Diameter	5,5 nom	Materials of Construction	Brass nickel plated
Type	Coupling	Hose I.D.	na
Connection Thread Size (inch)	1/4	Connection Type	Male Thread - parallel
Version	Single Shut-Off
