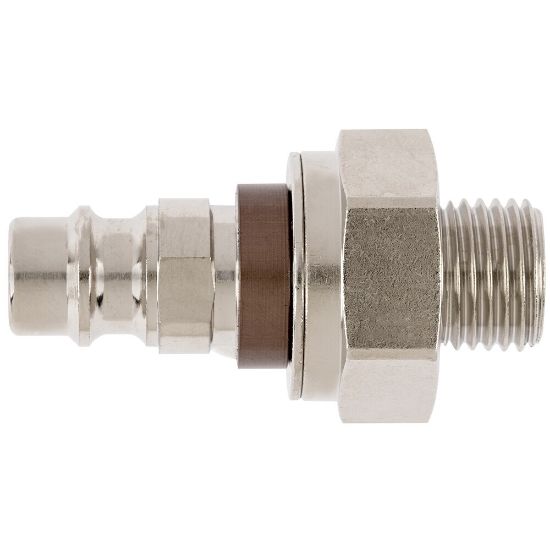

Premium Coded Quick Coupling, Series 25 - 25SBAW13MPN0

Name: Premium Coded Quick Coupling, Series 25 - 25SBAW13MPN0
SKU: 25SBAW13MPN0
Availability: OutOfStock

Premium coded industrial quick coupling system with nominal diameter 7.8 for pneumatic and fluid handling applications up to 35 bar. Coupling system developed on the basis of Parker Series 25. Available made of brass.

Availability:

Backordered

SKU: 25SBAW13MPN0

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Sleeve Material	BRASS
Seal Material	NBR	Brand	Parker
Shape	Straight	Minimum Operating Temperature	-4 °F
Valve Included	Yes	Technology	Fluid & Gas Handling
Connection Size	1/4 inch	Hex Size	22 mm
Region of Origin	Germany	Connection Type	Male
Product Style	Quick-Connect	Plating Type	Nickel-plated
Operation Type	Sleeve	Interchange Type	European Profile
Function	Double Shut-Off	Valve Type	Standard Valve
Version	Double Shut-Off	Coupling Half	Plug
Product Type	Quick Couplings Pneumatic	Maximum Operating Temperature	up to 212 °F
Maximum Operating Pressure	Depends on the Choosen Associated Coupler	Diameter	7.8
Product Series	Series 25	Flow Rate	710 L/min
Length	44.5 mm	Compatible Fitting	Series 25 Coupler
Type	Plug	Hose I.D.	n/a
Connection Thread Size	1/4"	Connection Type	Male Thread - parallel
Color	green - 0	Material	Brass, Nickel-plated
