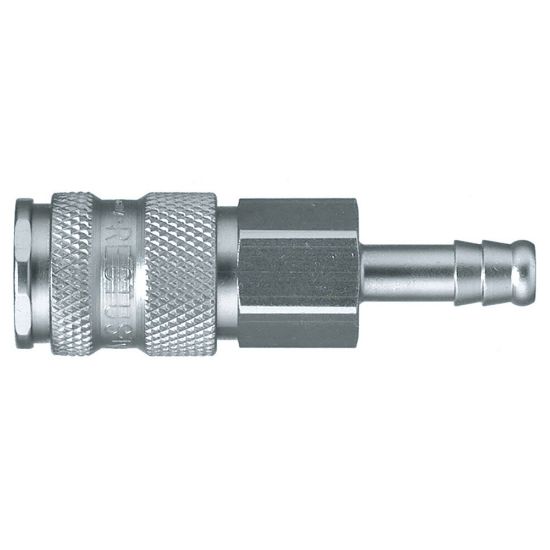

Premium Coded Quick Coupling, Series 25 - 25KBTF13BEN6

Name: Premium Coded Quick Coupling, Series 25 - 25KBTF13BEN6
SKU: 25KBTF13BEN6
Availability: OutOfStock

Premium coded industrial quick coupling system with nominal diameter 7.8 for pneumatic and fluid handling applications up to 35 bar. Coupling system developed on the basis of Parker Series 25. Available made of brass.

Availability:

Backordered

SKU: 25KBTF13BEN6

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	150 °C	Maximum Operating Pressure	35 bar
Valve Included	Yes	Seal Material	EPDM
Outside Diameter	23 mm	Hex Size	19 mm
Flow Rate	1800 L/min	Length	74 mm
Version	Double Shut-Off	Diameter	7,8 nom
Type	Coupling	Connection Type	Hose Barb
Connection Thread Size	n/a	Hose I.D.	13
Color	blue - 6	Material	Brass, Nickel-plated

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
