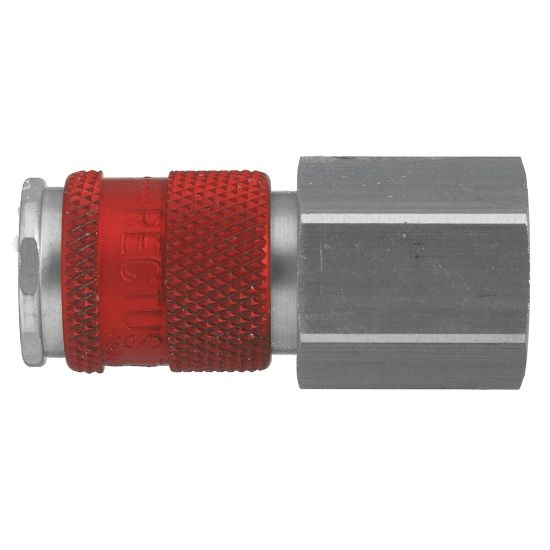

Premium Coded Quick Coupling, Series 25 - 25KBIW21BPN0

Name: Premium Coded Quick Coupling, Series 25 - 25KBIW21BPN0
SKU: 25KBIW21BPN0
Availability: OutOfStock

Premium coded industrial quick coupling system with nominal diameter 7.8 for pneumatic and fluid handling applications up to 35 bar. Coupling system developed on the basis of Parker Series 25. Available made of brass.

Availability:

Backordered

SKU: 25KBIW21BPN0

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Maximum Operating Pressure	35 bar	Valve Included	Yes
Outside Diameter	23 mm	Length	58 mm
Hex Size	24 mm	Version	Double Shut-Off
Diameter	7.8 nom	Flow Rate	710 L/min
Type	Coupling	Hose I.D.	n/a
Connection Thread Size	1/2"	Connection Type	Female Thread
Color	green - 0	Material	Brass, Nickel-plated

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
