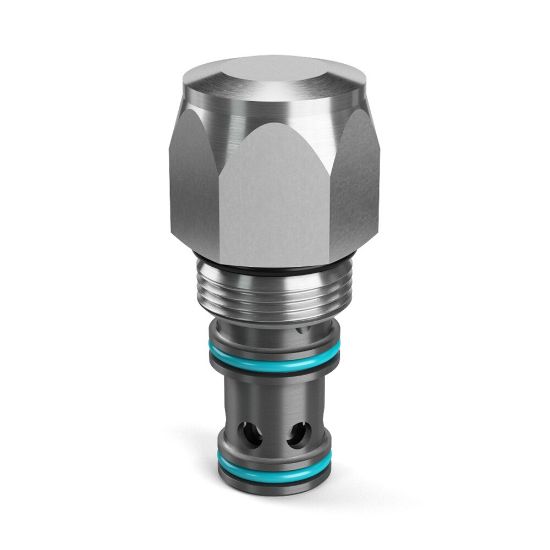

Poppet Type Logic Element - 16SLC1-A-150V

Name: Poppet Type Logic Element - 16SLC1-A-150V
SKU: 16SLC1-A-150V
Availability: OutOfStock

Parker logic elements are screw-in type cartridge valves that can be used to control flow, pressure, or direction up to 303 lpm and 240 bar, and when applied in the proper arrangements, can perform multi-task control functions.

Availability:

Backordered

SKU: 16SLC1-A-150V

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	240 bar	Operation Type	Pilot Operated
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Configuration	Normally Closed (NC)
Actuation Type	Pilot to Close	Minimum Operating Temperature	-15 °F
Operating Temperature	-26 to 204 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Vented	n/a
Function	Logic Valve	Leak Rate	5
For Fluid Type	Synthetic Hydraulic Fluids	Pilot Location	External
Valve Material	Hardened Steel	Switching Pressure	150 psi
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Inlet Pressure Rating	3500 psi
Flow Direction	Side to Nose (2-1)	Maximum Flow Rate	50 Gal/min
Maximum Operating Temperature	206 °C	Weight	0.78 lb
Flow Rate	50 Gal/min	Cavity Size	C16-3S
Installation Torque	54 Nm
Seal Material	Fluorocarbon	Configuration	Pilot to Close
Switching Pressure	150 PSI, 10.3 BAR	Flow Rate	50 GAL/MIN, 189 L/MIN
