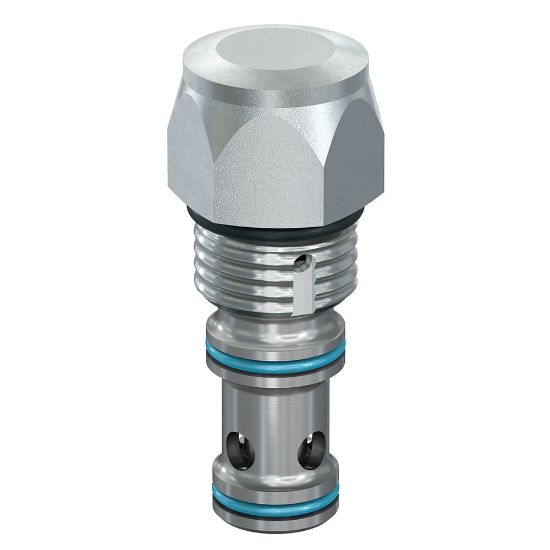

Poppet Type Logic Element - 10SLC1-A-100V

Name: Poppet Type Logic Element - 10SLC1-A-100V
SKU: 10SLC1-A-100V
Availability: OutOfStock

Parker logic elements are screw-in type cartridge valves that can be used to control flow, pressure, or direction up to 303 lpm and 240 bar, and when applied in the proper arrangements, can perform multi-task control functions.

Availability:

Backordered

SKU: 10SLC1-A-100V

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.14 kg	Operation Type	Pilot Operated
Maximum Operating Temperature	204 °C	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Valve Systems Division
Configuration	Normally Closed (NC)	Actuation Type	Pilot to Close
Flow Direction	Bi-directional	Maximum Flow Rate	57 L/min
Maximum Operating Pressure	3500 psi	Minimum Operating Temperature	-15 °F
Operating Temperature	-26 to 204 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Vented	n/a
Function	Logic Valve	Flow Rate	57 L/min
Leak Rate	5	Cavity Size	C10-3S
For Fluid Type	Mineral-based Hydraulic Fluids	Pilot Location	External
Valve Material	Steel	Switching Pressure	6.9 bar
Installation Torque	16 lb-ft	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Inlet Pressure Rating	3500 psi
Seal Material	Fluorocarbon	Flow Rate	15 GAL/MIN, 57 L/MIN
Configuration	Pilot to Close	Switching Pressure	100 PSI, 6.9 BAR
