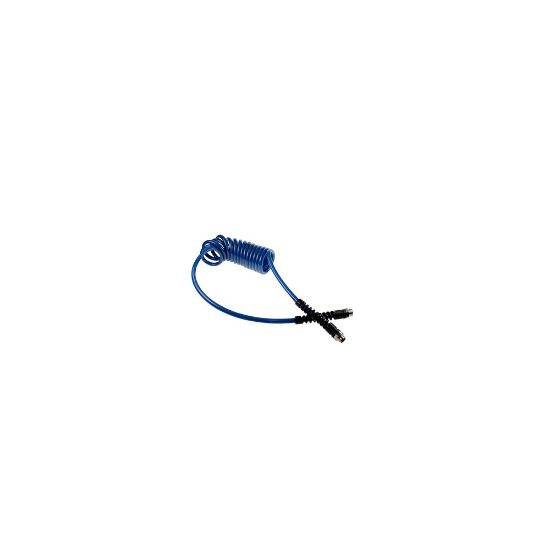

Polyurethane (PU) Recoil Tubing - 1445U08R04 13

Name: Polyurethane (PU) Recoil Tubing - 1445U08R04 13
SKU: 1445U08R04 13
Availability: OutOfStock

This polyurethane recoil tubing is perfect for installations requiring flexibility in confined spaces.
Good resistance to shock and abrasion, together with a design integrating straight ends, allow for easy and safe operation of pneumatic equipment.

Availability:

Backordered

SKU: 1445U08R04 13

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	70 °C	Minimum Operating Temperature	-20 °C
Maximum Operating Pressure	10 bar	Media	Air (Compressed Air)
Application	Robotics	Weight	0.17 kg
Specifications Met	NF E49-101 (Industrial)
Connection 1 Thread Size (metric)	G1/4	Color	BLUE
Outside Diameter	8 mm	Length (m)	3
Tubing Material	PU Ether	Inside Diameter	5 mm
