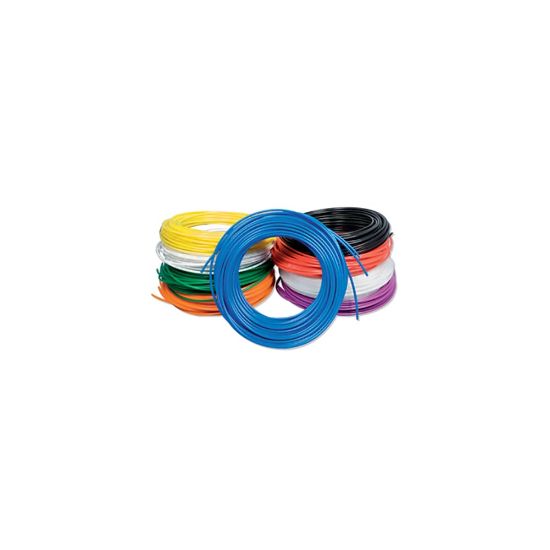

Polyethylene (PE) Tubing - 1096Y62F02

Name: Polyethylene (PE) Tubing - 1096Y62F02
SKU: 1096Y62F02
Availability: OutOfStock

Parker Legris offers two types of polyethylene tubing: "Advanced PE" 50% reticulated and Low Density PE.
Our range of "Advanced PE" is designed for demanding environments, especially that of water treatment, without compromising operator safety.

Availability:

Backordered

SKU: 1096Y62F02

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-40 °C
Number of Tubes	1	Vacuum Pressure Rating	755 mm-Hg
Application	Water	Specifications Met	RoHS 2002/95/EC (Advanced PE Tubing)
Maximum Operating Pressure	16 barg	Media	Beverages (Advanced PE)
Maximum Operating Temperature	95 °C	Weight	5.9 kg/package
Color	GREEN	Length (m)	na
Tube O.D. (inch)	1/2	Tube I.D. (mm)	na
Tube O.D. (mm)	na	Length (inch)	250
Tube I.D. (inch)	0,375
