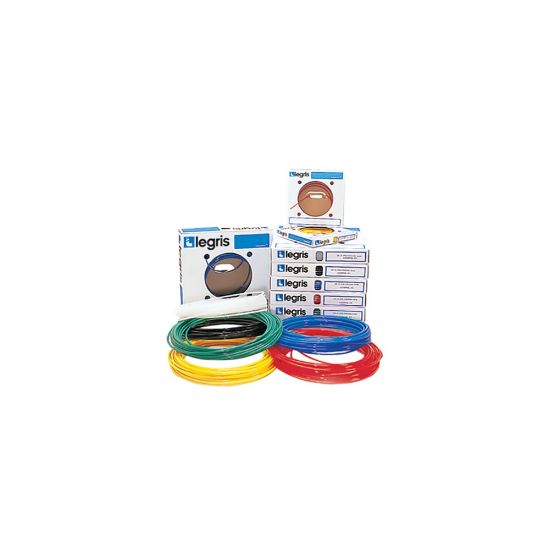

Polyamide (PA) Flexible Tubing - 1025P03 00 18

Name: Polyamide (PA) Flexible Tubing - 1025P03 00 18
SKU: 1025P03 00 18
Availability: OutOfStock

Tried-and-tested for industrial or vehicle applications, PA tubing guarantees excellent durability due to its stable long-term mechanical properties.
Special grade of semi-rigid polyamide manufactured according to our Eco-Design approach.

Availability:

Backordered

SKU: 1025P03 00 18

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Minimum Operating Temperature	-40 °C	Maximum Operating Pressure	50 bar
Maximum Operating Temperature	up to 100 °C See the Graph “Working Pressure/Working Temperature”	Number of Tubes	1
Vacuum Pressure Rating	755 mm-Hg	Specifications Met	ISO 7628 (for Chemical Performance and Resistance in Transportation)
Media	Air (Compressed Air: Semi-Rigid PA)	Weight	0.206 kg/package
Tubing Material	PA	Color	NATURAL
Tube O.D. (mm)	3	Length (m)	25
Tube I.D. (mm)	1,8
