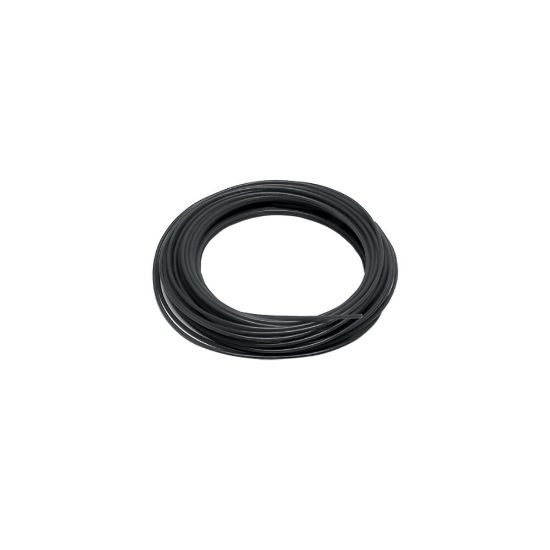

Polyamide (PA) Flexible Tubing - 1025L04 01 25

Name: Polyamide (PA) Flexible Tubing - 1025L04 01 25
SKU: 1025L04 01 25
Availability: OutOfStock

Tried-and-tested for industrial or vehicle applications, PA tubing guarantees excellent durability due to its stable long-term mechanical properties.
Special grade of semi-rigid polyamide manufactured according to our Eco-Design approach.

Availability:

Backordered

SKU: 1025L04 01 25

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-40 °C
Specifications Met	PED 97/23/EC (Industrial)	Maximum Operating Temperature	up to 100 °C See the Graph “Working Pressure/Working Temperature”
Number of Tubes	1	Vacuum Pressure Rating	755 mm-Hg
Application	Motion Technologies	Maximum Operating Pressure	58 bar
Media	Air (Compressed Air: Rigid PA)	Weight	0.192 kg/package
Color	BLACK	Tube I.D. (mm)	2,5
Tube O.D. (mm)	4	Length (m)	25
Tubing Material	Rigid PA - 65 SHORE D
