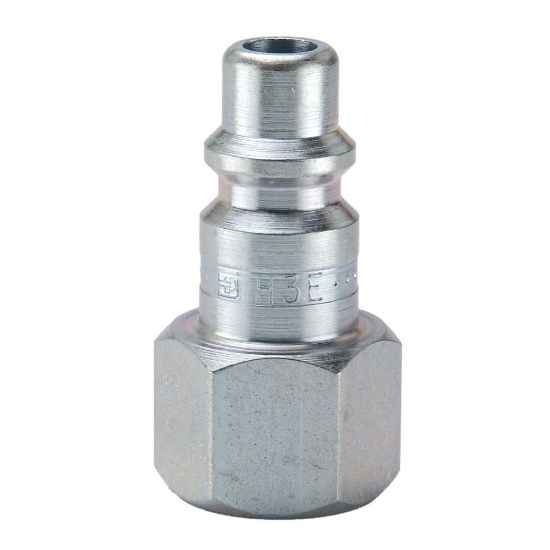

Pneumatic Industrial Interchange Nipples (A-A-59439, MIL-C-4109F, ISO 6150-B) - SH3C-E

Name: Pneumatic Industrial Interchange Nipples (A-A-59439, MIL-C-4109F, ISO 6150-B) - SH3C-E
SKU: SH3C-E
Availability: OutOfStock

Parker's general purpose, Industrial Interchange quick connect air nipples (plugs) are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU: SH3C-E

Qty:

Products specifications

Attribute name	Attribute value
Coupling Half	Nipple	Maximum Operating Pressure	300 psi
Application	Air	Media	Low pressure fluids and compressed air
Valve Type	Unvalved	Plating Type	na
Division	Quick Coupling Division	Specifications Met	A-A-59439 (MIL-C-4109F, ISO 6150-B)
Body Size (inch)	1/4	Body Material	Stainless steel (303)
Connection Type	NPTF	Thread Style	Female
Connection Thread Size (inch)	3/8 - 18	Connection Hose I.D. (inch)	na

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories

Literature and Reference Materials
