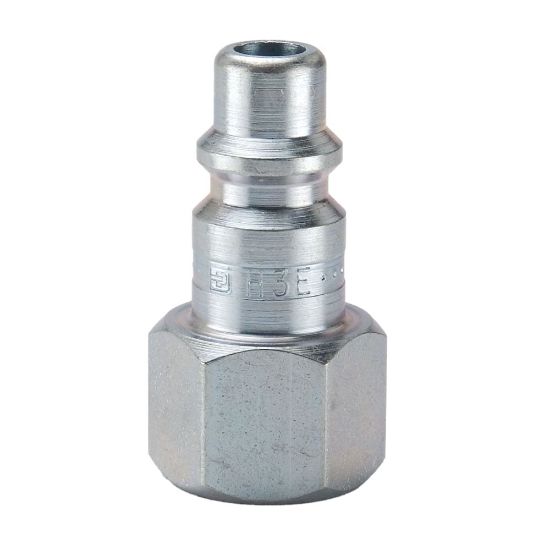

Pneumatic Industrial Interchange Nipples (A-A-59439, MIL-C-4109F, ISO 6150-B) - H1E

Parker's general purpose, Industrial Interchange quick connect air nipples (plugs) are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	26 in stock
Partner Available:	524 in stock

SKU: H1E

$8.97

Qty:

Products specifications

Attribute name	Attribute value
Application	Air	Media	Low pressure fluids and compressed air
Dimensional Weight	0.01999400479616307 lb	Valve Type	Unvalved
Plating Type	Zinc with clear trivalent chromate	Division	Quick Coupling Division
Specifications Met	A-A-59439 (MIL-C-4109F, ISO 6150-B)	Coupling Half	Nipple
Maximum Operating Pressure	300 psi
Body Size (inch)	3/8	Connection Hose I.D. (inch)	na
Body Material	Steel	Thread Style	Female
Connection Thread Size (inch)	1/4 - 18	Connection Type	NPTF

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
