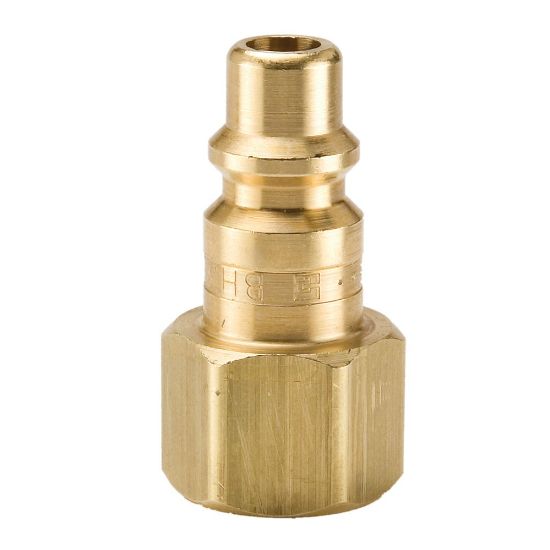

Pneumatic Industrial Interchange Nipples (A-A-59439, MIL-C-4109F, ISO 6150-B) - BH3E

Parker's general purpose, Industrial Interchange quick connect air nipples (plugs) are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	12 in stock
Partner Available:	109 in stock

SKU: BH3E

$14.66

Products specifications

Attribute name	Attribute value
Plating Type	na	Division	Quick Coupling Division
Dimensional Weight	0.01335431654676259 lb	Specifications Met	A-A-59439 (MIL-C-4109F, ISO 6150-B)
Coupling Half	Nipple	Maximum Operating Pressure	300 psi
Application	Air	Media	Low pressure fluids and compressed air
Valve Type	Unvalved
Connection Type	NPTF	Thread Style	Female
Body Size (inch)	3/8	Connection Hose I.D. (inch)	na
Body Material	BRASS	Connection Thread Size (inch)	3/8 - 18

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
