*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

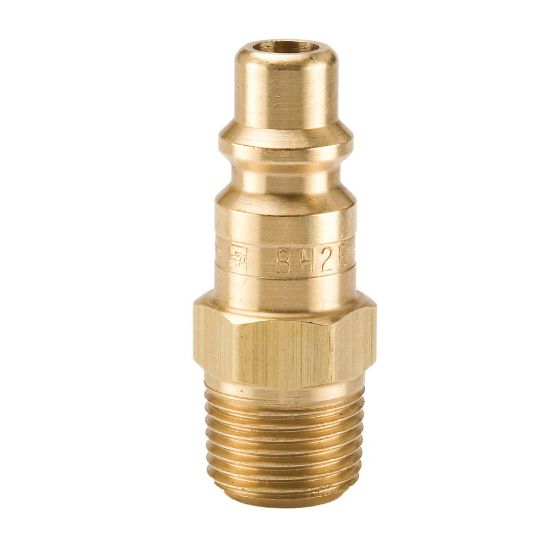

Pneumatic Industrial Interchange Nipples (A-A-59439, MIL-C-4109F, ISO 6150-B) - BH2G

Parker's general purpose, Industrial Interchange quick connect air nipples (plugs) are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	11 in stock
Partner Available:	13 in stock

SKU: BH2G

$104.97

Products specifications

Attribute name	Attribute value
Media	Low pressure fluids and compressed air	Plating Type	na
Valve Type	Unvalved	Dimensional Weight	0.05341726618705036 lb
Division	Quick Coupling Division	Specifications Met	A-A-59439 (MIL-C-4109F, ISO 6150-B)
Coupling Half	Nipple	Maximum Operating Pressure	300 psi
Application	Air
Connection Thread Size (inch)	3/4 - 14	Body Material	BRASS
Connection Hose I.D. (inch)	na	Thread Style	Male
Connection Type	NPTF	Body Size (inch)	3/4

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
