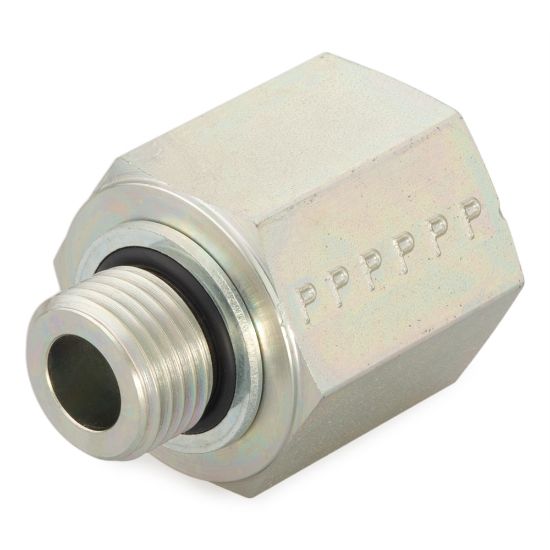

Pipe Fittings and Port Adapters - M16-3/8F8OHGS

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	45 in stock
Partner Available:	241 in stock

SKU: M16-3/8F8OHGS

$22.41

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Dimensional Weight	0.03871402877697842 lb	Connection 4 Thread Size	na
Fitting Type	Pipe Adapter	Maximum Dynamic Pressure	5000 psi
O-Ring Material	90 Durometer Nitrile	Body Material	Steel
Shape	Straight	Connection 3 Style	na
Connection 1 Thread Size (mm)	M16X1.5	Connection Style	Metric O-Ring Retaining Ring to NPTF
Connection 1 Style	Male Metric O-Ring Retaining Ring	Connection 2 Style	Female NPT/NPTF
Connection 2 Thread Size (mm)	na	Connection 3 Thread Size (inch)	na
Connection 2 Thread Size (inch)	3/8-18	Connection 1 Thread Size (inch)	na
Length (inch)	na
