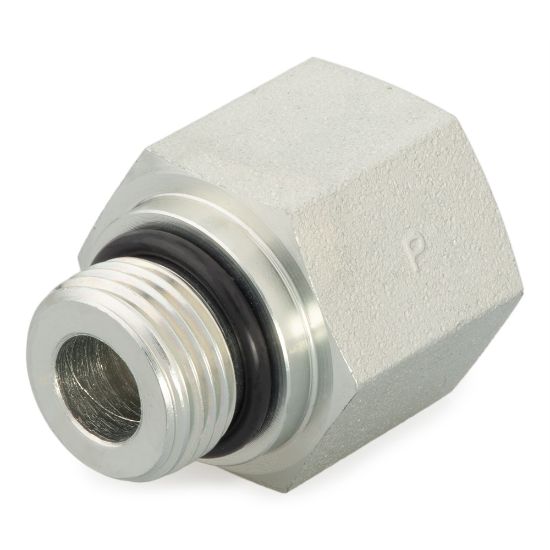

Pipe Fittings and Port Adapters - 8-1/4 F5OG-S

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	84 in stock
Partner Available:	1140 in stock

SKU: 8-1/4 F5OG-S

$6.88

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.04112185251798561 lb	Connection 4 Thread Size	na
Connection 4 Size	na	Maximum Dynamic Pressure	6000 psi
Division	Tube Fittings Division	Fitting Type	Port Adapter
Body Material	Steel	Connection 2 Thread Size (mm)	na
Connection 2 Thread Size (inch)	1/4-18	Connection 3 Thread Size (inch)	na
Connection 2 Style	Female NPT/NPTF	Connection 3 Style	na
Connection Style	SAE-ORB to NPT/NPTF	Length (inch)	na
Connection 1 Style	Male SAE-ORB	Shape	Straight
O-Ring Material	90 Durometer Nitrile	Connection 1 Thread Size (mm)	na
Connection 1 Thread Size (inch)	3/4-16
