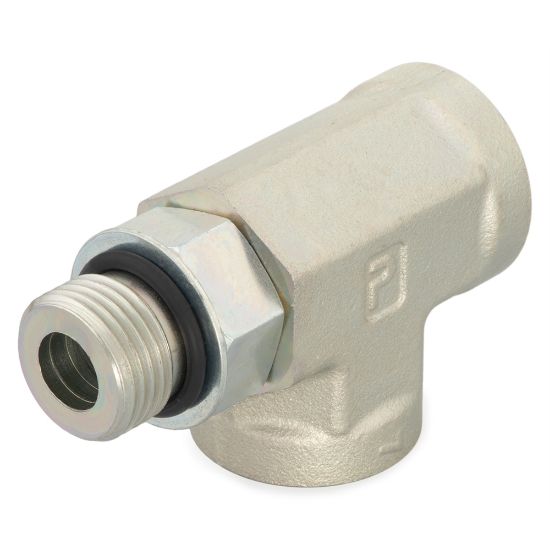

Pipe Fittings and Port Adapters - 6 AOG5JG5-S

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Backordered
Partner Available:	348 in stock

SKU: 6 AOG5JG5-S

$66.92

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.04934622302158273 lb	Division	Tube Fittings Division
Connection 4 Size	na	Fitting Type	Port Adapter
Connection 4 Thread Size	na	Maximum Dynamic Pressure	5000 psi
Shape	Tee	Connection 2 Thread Size (inch)	9/16-18
Connection 2 Style	Female SAE-ORB	Connection Style	Straight Thread Run Tee
Body Material	Steel	Connection 1 Thread Size (mm)	na
O-Ring Material	90 Durometer Nitrile	Connection 1 Thread Size (inch)	9/16-18
Length (inch)	na	Connection 1 Style	Male SAE-ORB
Connection 3 Thread Size (inch)	9/16-18	Connection 2 Thread Size (mm)	na
Connection 3 Style	Female SAE-ORB
