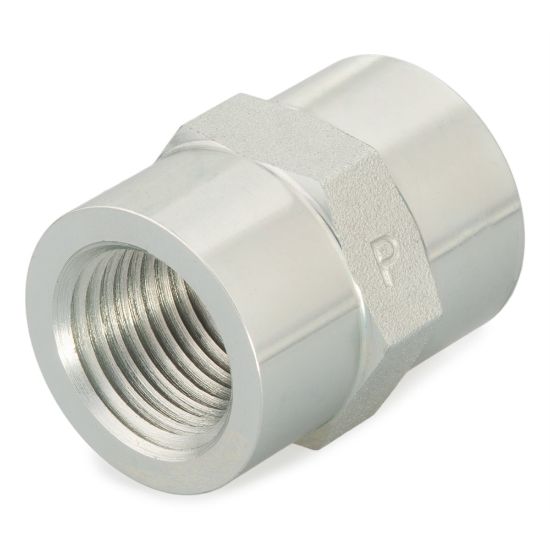

Pipe Fittings and Port Adapters - 1/4 GG-S

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	301 in stock
Partner Available:	2463 in stock

SKU: 1/4 GG-S

$4.31

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Connection 4 Thread Size	na	Maximum Dynamic Pressure	6000 psi
Fitting Type	Pipe Fitting	Dimensional Weight	0.011236510791366906 lb
O-Ring Material	na	Shape	Straight
Length (inch)	na	Body Material	Steel
Connection 3 Style	na	Connection 1 Thread Size (mm)	na
Connection 2 Thread Size (mm)	na	Connection 3 Thread Size (inch)	na
Connection 1 Thread Size (inch)	1/4-18	Connection 2 Thread Size (inch)	1/4-18
Connection 1 Style	Female NPT/NPTF	Connection Style	NPT/NPTF to NPT/NPTF
Connection 2 Style	Female NPT/NPTF
