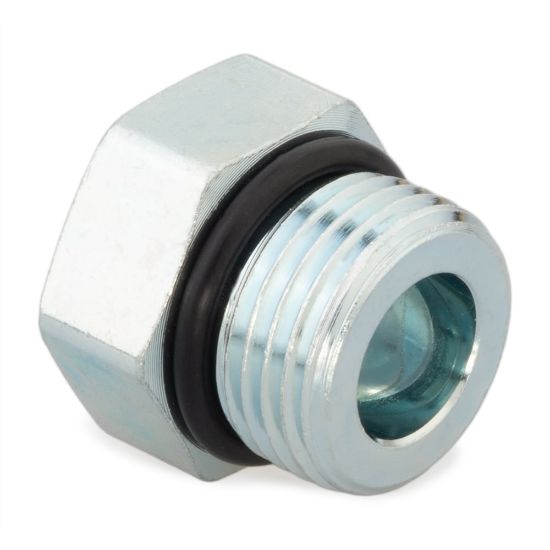

Pipe Fittings and Port Adapters - 12 P5ON-S

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	99 in stock
Partner Available:	5507 in stock

SKU: 12 P5ON-S

$5.35

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Connection 4 Thread Size	na	Maximum Dynamic Pressure	6000 psi
Dimensional Weight	0.03871402877697842 lb	Fitting Type	Port Adapter
Length (inch)	na	Body Material	Steel
Connection 3 Style	na	Connection 1 Thread Size (mm)	na
Connection 2 Thread Size (mm)	na	Connection 3 Thread Size (inch)	na
Connection 2 Style	na	O-Ring Material	90 Durometer Nitrile
Connection 1 Style	Male SAE-ORB	Connection 1 Thread Size (inch)	1 1/16-12
Shape	Plug	Connection Style	Hex Head Plug
Connection 2 Thread Size (inch)	na
