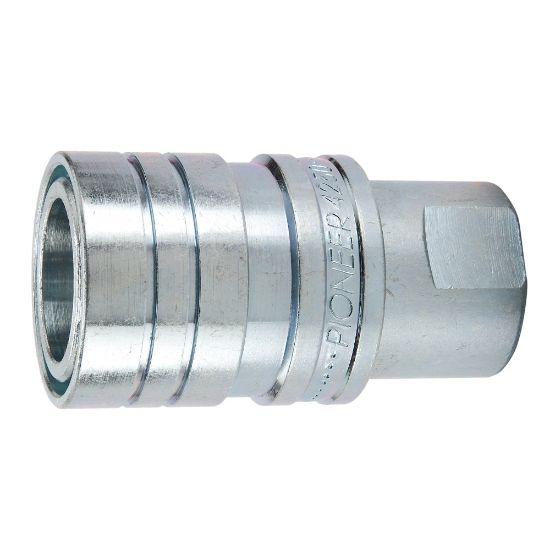

Pioneer Agricultural, Push to Connect Quick Couplers, Breakaway Sleeve (ISO 5675) - 4200 Series - 4250-15

Parker's agricultural quick couplers and nipples are the farmers choice where fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	9 in stock

SKU: 4250-15

$38.31

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.12464028776978417 lb	Minimum Operating Temperature	-40 °F
Body Material	Steel	Seal Material	Nitrile
Division	Quick Coupling Division	Maximum Operating Pressure	3000 psi
Thread Size	Female	Coupling Half	Coupler
Maximum Operating Temperature	250 °F	Plating Type	Zinc with clear trivalent chromate
Lock Type	Locking balls	Application	General Purpose
Specifications Met	ISO 5675	Flow Rate	12 Gal/min
Body Size	1/2 inch	Media	Hydraulic
Sleeve Type	Breakaway Sleeve	Connection Type	ORB
Connection Thread Size (inch)	3/4 - 16	Valve Style	Ball

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
