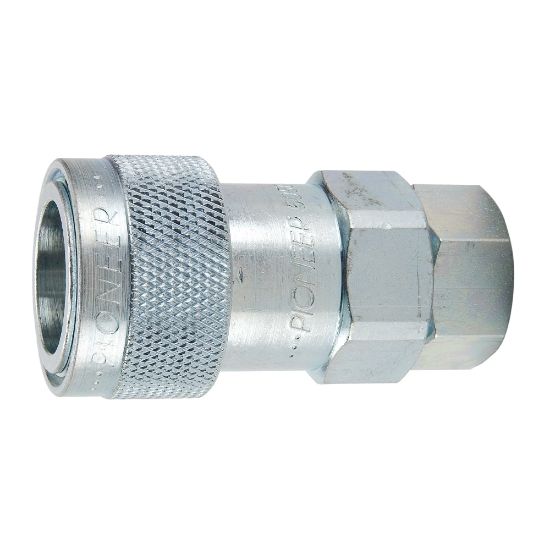

Pioneer Agricultural, Connect Under Pressure, Thread Actuated Quick Couplers (ISO 5675) - 5000 Series - 5050-4

Parker's connect under pressure quick couplers with threaded actuation are an economic solution for connecting fluid lines while under pressure. They require the use of tools to open the connected coupling valves.

Availability:	Backordered
Partner Available:	86 in stock

SKU: 5050-4

$78.55

Products specifications

Attribute name	Attribute value
Application	Hydraulics	Minimum Operating Temperature	-40 °F
Lock Type	Locking balls	Plating Type	Zinc with clear trivalent chromate
Body Material	Steel	Maximum Operating Pressure	2500 psi
Connection Type	NPTF	Thread Size	Female
Maximum Operating Temperature	250 °F	Media	Hydraulic
Flow Rate	12 Gal/min	Valve Type	Ball
Specifications Met	ISO 5675	Coupling Half	Coupler
Division	Quick Coupling Division	Body Size	1/2 inch
Sleeve Type	Manual	Seal Material	Nitrile
Connection Thread Size (inch)	1/2 - 14

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
