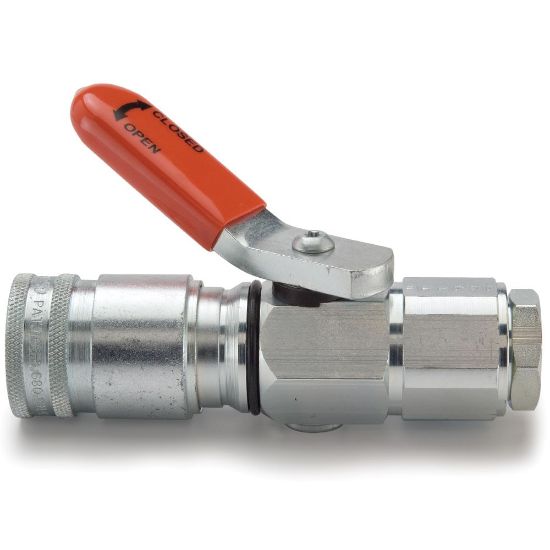

Pioneer Agricultural, Connect Under Pressure, Lever Operated Quick Couplers, Breakaway Sleeve (ISO 5675) - 9200 Series - 9250-15R

Name: Pioneer Agricultural, Connect Under Pressure, Lever Operated Quick Couplers, Breakaway Sleeve (ISO 5675) - 9200 Series - 9250-15R
SKU: 9250-15R
Availability: OutOfStock

Parker's premium agricultural connect under pressure quick couplers are lever actuated to easily open and close the valves while under pressure. The coupler valve will close automatically in a breakaway.

Availability:

Backordered

SKU: 9250-15R

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	12 Gal/min	Body Material	Steel
Connection Type	UNF	Thread Size	Female
Maximum Operating Temperature	250 °F	Media	Hydraulic
Maximum Operating Pressure	3000 psi	Minimum Operating Temperature	-40 °F
Valve Type	Poppet	Lock Type	Locking balls
Application	Connect Under Pressure	Plating Type	Zinc with clear trivalent chromate
Coupling Half	Coupler	Specifications Met	ISO 5675
Division	Quick Coupling Division	Body Size	1/2 inch
Seal Material	Nitrile	Brand	Pioneer
Connection Thread Size (inch)	3/4 - 16	Mounting Position	Right hand – red grip
Sleeve Type	Manual push pull sleeve
