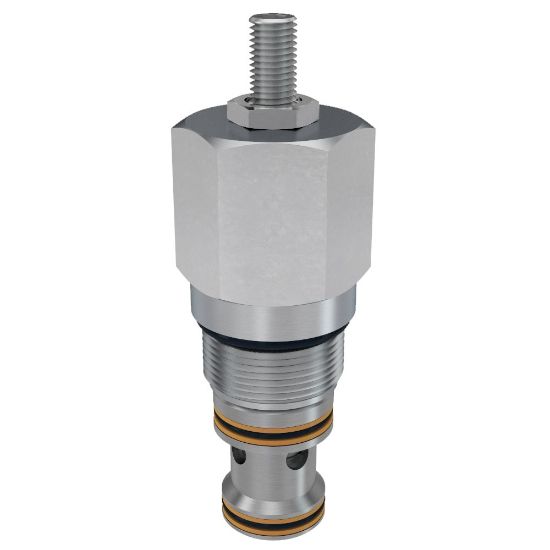

Pilot Operated Ventable Relief Valves - A06H3PTV

Name: Pilot Operated Ventable Relief Valves - A06H3PTV
SKU: A06H3PTV
Availability: OutOfStock

REGIONAL - Parker’s pilot operated ventable relief valves offer the ability to control the pressure setting via internal adjustment or remote circuit; ideal in applications that require multiple settings up to 420 bar (6000 psi) and 400 lpm (106 gpm).

Availability:

Backordered

SKU: A06H3PTV

Qty:

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	400 L/min	Maximum Operating Temperature	400 °F
Seal Material	Fluorocarbon	Maximum Operating Pressure	6000 psi
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Minimum Operating Temperature	-26 °C	Operating Temperature	-26 to 204 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	For Fluid Type	Mineral-based Hydraulic Fluids
Filter Efficiency Rating	SAE Class 4	Cavity Size	C16-3S
Flow Rate	400 L/min	Weight	0.58 kg
Function	Pilot Operated	Configuration	Ventable Pressure Relief
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Maximum Pressure Setting	6000 psi	Division	Mobile Hydraulic Systems Division Europe
Leak Rate	100 cm3/min @ 1450 Psi (100 bar)	Operation Type	Automatic
Valve Material	Steel (all parts)	Reseat Pressure	n/a
Installation Torque	100 Nm	Adjustment Mechanism	Tamper Resistant
Maximum Tank Pressure	420 bar	Pressure Control Range	10 to 420 bar
Standard Setting Pressure	200 bar	Pressure Control Sensitivity	800 psi Per Turn
Maximum Inlet Pressure Rating	420 bar
Seal Material	Fluorocarbon	Flow Rate	106 GAL/MIN, 400 L/MIN
Adjustment Mechanism	Tamper Resistant	Pressure Control Range	145-6000 PSI, 10-420 BAR
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
