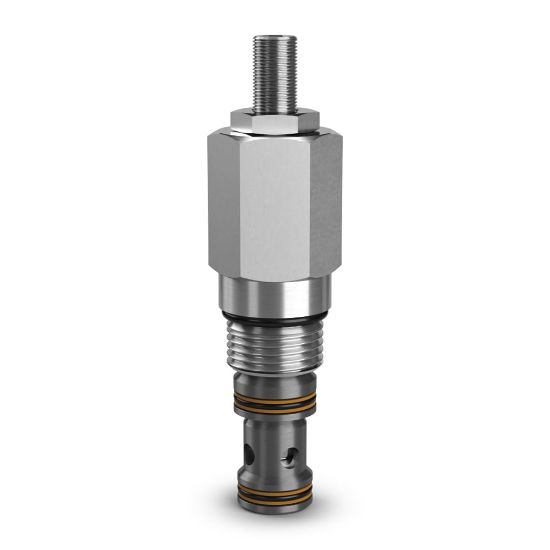

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pilot Operated Ventable Relief Valves - A04H3PWN

Name: Pilot Operated Ventable Relief Valves - A04H3PWN
SKU: A04H3PWN
Availability: OutOfStock

REGIONAL - Parker’s pilot operated ventable relief valves offer the ability to control the pressure setting via internal adjustment or remote circuit; ideal in applications that require multiple settings up to 420 bar (6000 psi) and 400 lpm (106 gpm).

Availability:

Backordered

SKU: A04H3PWN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.25 kg	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Maximum Operating Pressure	6000 psi
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Cavity Size	C10-3S
For Fluid Type	Mineral-based Hydraulic Fluids	Filter Efficiency Rating	SAE Class 4
Flow Rate	50 Gal/min	Minimum Operating Temperature	-34 °C
Function	Pilot Operated	Configuration	Ventable Pressure Relief
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Maximum Flow Rate	190 L/min	Maximum Pressure Setting	6000 psi
Division	Mobile Hydraulic Systems Division Europe	Leak Rate	25 cm3/min @ 1450 Psi (100 bar)
Operation Type	Automatic	Valve Material	Hardened Steel (all operating parts)
Reseat Pressure	n/a	Installation Torque	37 lb-ft
Adjustment Mechanism	Knob	Maximum Tank Pressure	6000 psi
Operating Temperature	-34 to 121 °C	Pressure Control Range	10 to 420 bar
Standard Setting Pressure	200 bar	Pressure Control Sensitivity	800 psi Per Turn
Maximum Inlet Pressure Rating	6000 psi
Seal Material	Nitrile	Flow Rate	50 GAL/MIN, 190 L/MIN
Adjustment Mechanism	Knob	Pressure Control Range	145-6000 PSI, 10-420 BAR
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
