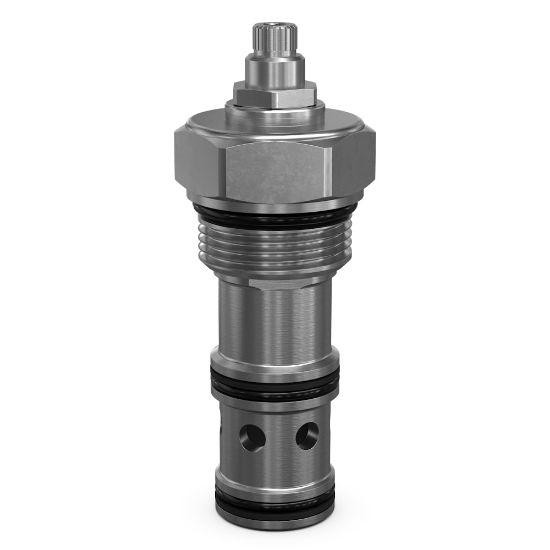

Pilot Operated Sequence Valves - SVH161K50

Name: Pilot Operated Sequence Valves - SVH161K50
SKU: SVH161K50
Availability: OutOfStock

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:

Backordered

SKU: SVH161K50

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Port Size	n/a
Body Material	n/a	Maximum Operating Pressure	5500 psi
Division	Hydraulic Cartridge Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Pilot Location	Internal
Weight	1 lb	Minimum Operating Temperature	-34 °C
Maximum Flow Rate	40 Gal/min	Actuation Type	Pressure Sensing
Maximum Pressure Setting	5000 psi	Adjustment Mechanism	Knob
Maximum Tank Pressure	5000 psi	Function	Pilot Operated Sequence
Drain Option	External	Mounting Type	Threaded Cartridge Valve
Maximum Inlet Pressure Rating	5500 psi	Installation Torque	73 lb-ft
Flow Rate	40 Gal/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+121 °C	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Standard Setting Pressure	2500 psi	Cracking Pressure	N/A psi
Pressure Control Range	500-5000 psi	Pressure Control Sensitivity	118 per turn bar
Leak Rate	5 per 100 psi (6.8 bar) setting cm3/min	Cavity Size	6-3
Reseat Pressure	80% of set pressure	Maximum Drain Flow Rate	0.5 L/min
Drain Option	External	Seal Material	Nitrile
Adjustment Type	Knob	Pilot Option	Internal
Rated Flow (gpm)	40	Cracking Pressure (psi)	N/A
Pressure Range Adjustment (psi)	500-5000
