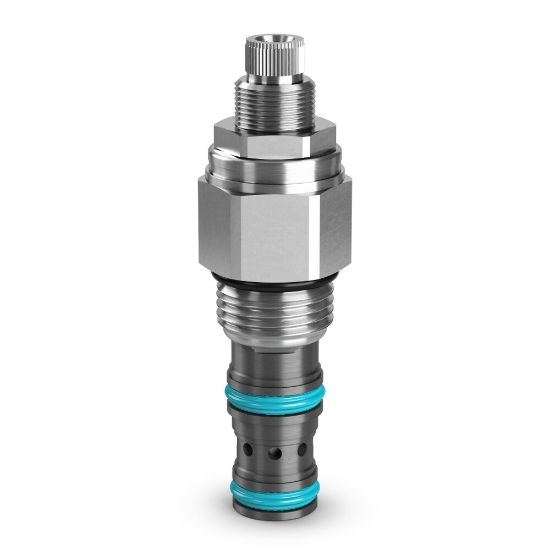

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pilot Operated Sequence Valves - SVH081K10

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Backordered
Partner Available:	Backordered

SKU: SVH081K10

$111.00

Products specifications

Attribute name	Attribute value
Port Size	n/a	Body Material	n/a
Maximum Operating Pressure	5500 psi	Division	Hydraulic Cartridge Systems Division
Minimum Operating Temperature	-37 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Pilot Location	Internal
Flow Rate	12 Gal/min	Actuation Type	Pressure Sensing
Adjustment Mechanism	Knob	Maximum Tank Pressure	5000 psi
Seal Material	D-Ring (Standard)	Weight	0.25 lb
Function	Pilot Operated Sequence	Cavity Size	C08-3
Drain Option	External	Maximum Flow Rate	45 L/min
Mounting Type	Threaded Cartridge Valve	Maximum Inlet Pressure Rating	380 bar
Installation Torque	43-49 Nm	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-37 to +93 °C	Maximum Operating Temperature	+93 °C
Maximum Pressure Setting	69 bar	Standard Setting Pressure	500 psi
Pressure Control Sensitivity	19.6 per turn bar	Cracking Pressure	N/A psi
Pressure Control Range	100-1000 psi	Maximum Drain Flow Rate	0.56 L/min
Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min	Reseat Pressure	90% of set pressure
Drain Option	External	Seal Material	D-Ring (Standard)
Adjustment Type	Knob	Pilot Option	Internal
Rated Flow (gpm)	12	Cracking Pressure (psi)	N/A
Pressure Range Adjustment (psi)	100-1000
