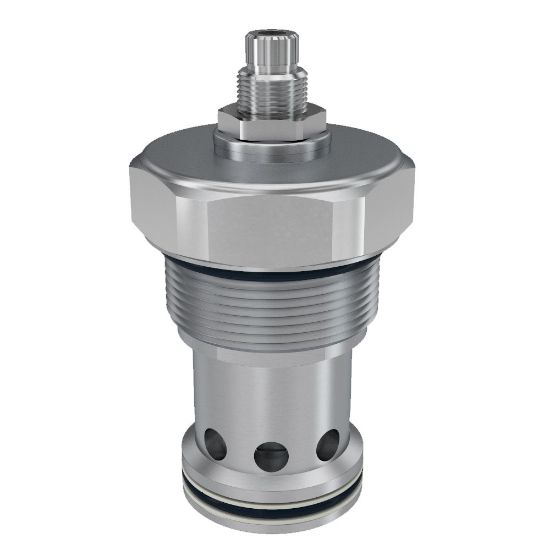

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pilot Operated Relief Valves - RAH201K50V

Name: Pilot Operated Relief Valves - RAH201K50V
SKU: RAH201K50V
Availability: OutOfStock

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Availability:

Backordered

SKU: RAH201K50V

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.9 kg	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Cartridge Systems Division	Minimum Operating Temperature	-15 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Flow Rate	100 Gal/min	Maximum Flow Rate	379 L/min
Function	Pilot Operated	Configuration	Pressure Relief
Actuation Type	Pressure Sensing	Maximum Pressure Setting	5000 psi
Operation Type	Automatic	Adjustment Mechanism	Knob
Maximum Tank Pressure	350 bar	Cavity Size	C20-2
Maximum Inlet Pressure Rating	5500 psi	Installation Torque	98 lb-ft
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+204 °C
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-26 to +204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Standard Setting Pressure	2500 psi	Pressure Control Range	500-5000 psi
Pressure Control Sensitivity	1711 per turn psi	Leak Rate	5 per @ 100 psi (6.8 bar) setting cm3/min
Reseat Pressure	80% of pressure setting
Seal Material	Fluorocarbon	Adjustment Mechanism	Knob
Maximum Inlet Pressure Rating	5500 PSI, 380 BAR	Pressure Control Range	500-5000 PSI, 34.5-350 BAR
Flow Rate	100 GAL/MIN, 379 L/MIN
