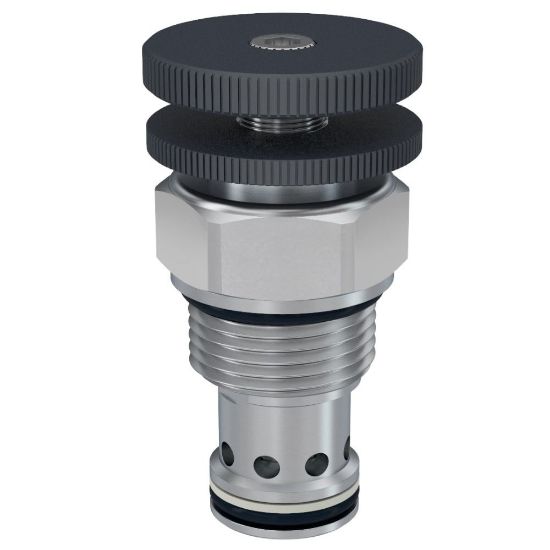

Pilot Operated Relief Valves - RAH121K30V

Name: Pilot Operated Relief Valves - RAH121K30V
SKU: RAH121K30V
Availability: OutOfStock

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Availability:

Backordered

SKU: RAH121K30V

Qty:

Products specifications

Attribute name	Attribute value
Maximum Pressure Setting	210 bar	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Cartridge Systems Division	Minimum Operating Temperature	-26 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Maximum Flow Rate	50 Gal/min	Function	Pilot Operated
Configuration	Pressure Relief	Actuation Type	Pressure Sensing
Operation Type	Automatic	Adjustment Mechanism	Knob
Maximum Tank Pressure	5000 psi	Cavity Size	C12-2
Maximum Inlet Pressure Rating	380 bar	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+204 °C	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-26 to +204 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Weight	0.48 lb
Standard Setting Pressure	1500 psi	Pressure Control Range	300-3000 psi
Flow Rate	189.5 L/min	Leak Rate	82 @ 75% Crack Pressure cm3/min
Reseat Pressure	80% of pressure setting	Installation Torque	124-130 Nm
Pressure Control Sensitivity	867 per turn psi
Seal Material	Fluorocarbon	Adjustment Mechanism	Knob
Maximum Inlet Pressure Rating	5500 PSI, 380 BAR	Pressure Control Range	300-3000 PSI, 20.7-210 BAR
Flow Rate	50 GAL/MIN, 189.5 L/MIN
