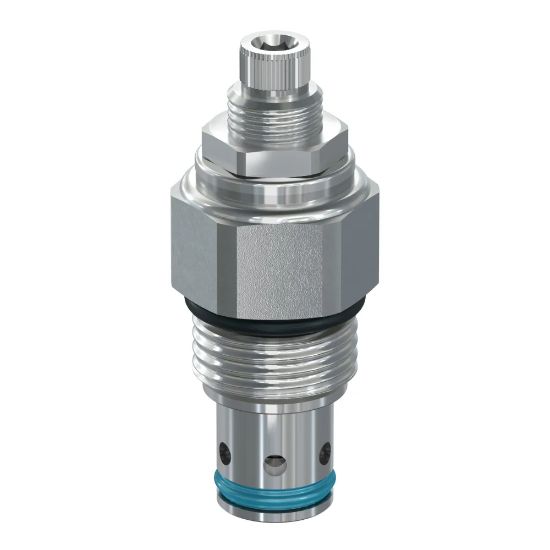

Pilot Operated Relief Valves - RAH101K30

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Availability:	Backordered
Partner Available:	12 in stock

SKU: RAH101K30

$75.75

Products specifications

Attribute name	Attribute value
Operating Temperature	-35 to +200 °F	Flow Rate	113 L/min
Maximum Tank Pressure	350 bar	Installation Torque	69-75 Nm
Maximum Flow Rate	113 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Pressure	5000 psi	Maximum Pressure Setting	210 bar
Division	Hydraulic Systems Division	Standard Setting Pressure	103.5 bar
Maximum Operating Temperature	+200 °F	Valve Material	All parts steel. All operating parts hardened steel
Cavity Size	C10-2	Operation Type	Automatic
Minimum Operating Temperature	-37 °C	Maximum Inlet Pressure Rating	5000 psi
Division	Hydraulic Cartridge Systems Division	Weight	0.23 kg
Body Material	n/a	Reseat Pressure	90% of pressure setting
Mounting Type	Screw in cartridge valve	Pressure Control Range	13.8-210 bar
Leak Rate	5 per @ 100 psi (6.8 bar) setting cm3/min	Configuration	Pressure Relief
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Function	Pilot Operated
Seal Material	D-Ring (Standard)	Pressure Control Sensitivity	58.9 per turn bar
Adjustment Mechanism	Knob	Actuation Type	Pressure Sensing
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Seal Material	D-Ring (Standard)	Pressure Control Range	200-3000 PSI, 13.8-210 BAR
Flow Rate	30 GAL/MIN, 113 L/MIN	Adjustment Mechanism	Knob
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
