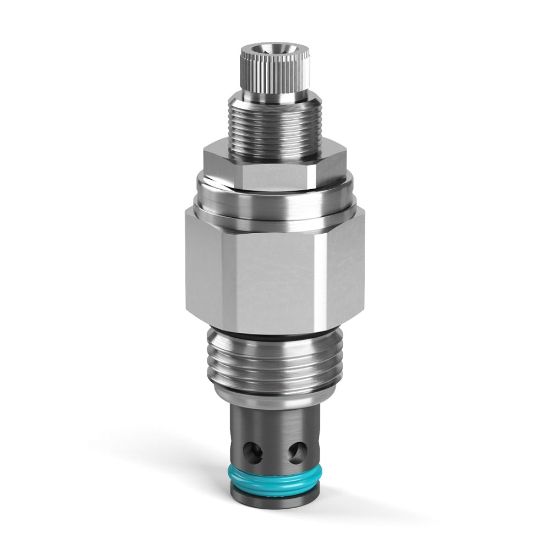

Pilot Operated Relief Valves - RAH081T10N

Name: Pilot Operated Relief Valves - RAH081T10N
SKU: RAH081T10N
Availability: OutOfStock

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Availability:

Backordered

SKU: RAH081T10N

Qty:

Products specifications

Attribute name	Attribute value
Body Material	n/a	Mounting Type	Screw in cartridge valve
Reseat Pressure	90% of pressure setting	Maximum Operating Pressure	5000 psi
Maximum Tank Pressure	5000 psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Pressure Setting	69 bar	Maximum Operating Temperature	+250 °F
Actuation Type	Pressure Sensing	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operation Type	Automatic	Minimum Operating Temperature	-34 °C
Maximum Inlet Pressure Rating	5000 psi	Division	Hydraulic Cartridge Systems Division
Adjustment Mechanism	Tamper Resistant	Cavity Size	C08-2
Seal Material	Nitrile	Function	Pilot Operated
Configuration	Pressure Relief	Weight	0.09 kg
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-30 to +250 °F
Leak Rate	5 per @ 100 psi (6.8 bar) setting cm3/min	Standard Setting Pressure	500 psi
Flow Rate	75.8 L/min	Valve Material	All parts steel. All operating parts hardened steel
Division	Hydraulic Systems Division	Pressure Control Range	6.9-69 bar
Installation Torque	43-49 Nm	Pressure Control Sensitivity	19.6 per turn bar
Maximum Flow Rate	75.8 L/min
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	Nitrile
Flow Rate	20 GAL/MIN, 75.8 L/MIN	Pressure Control Range	100-1000 PSI, 6.9-69 BAR
Adjustment Mechanism	Tamper Resistant
