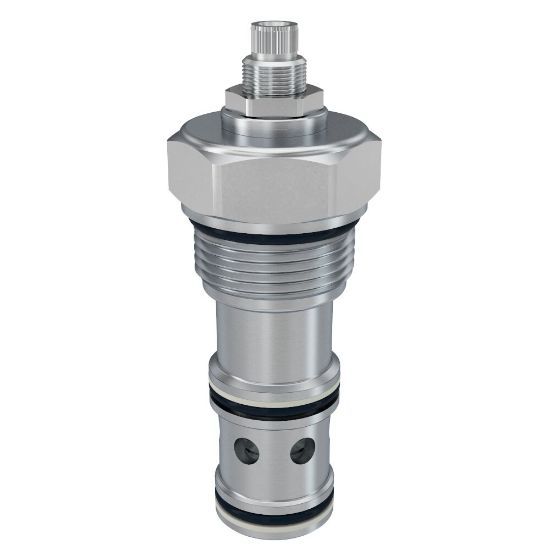

Pilot Operated Pressure Reducing Valves - PRH162S20V

Name: Pilot Operated Pressure Reducing Valves - PRH162S20V
SKU: PRH162S20V
Availability: OutOfStock

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Availability:

Backordered

SKU: PRH162S20V

Qty:

Products specifications

Attribute name	Attribute value
Division	Hydraulic Cartridge Systems Division	Mounting Type	Screw in cartridge valve
Weight	2 lb	Operating Temperature	-15 to +400 °F
Installation Torque	73 lb-ft	Operation Type	Automatic
Body Material	n/a	Maximum Operating Pressure	5000 psi
Pressure Control Range	200-2000 psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Seal Material	Fluorocarbon
Valve Material	All parts steel. All operating parts hardened steel.	Flow Rate	40 Gal/min
Pressure Control Sensitivity	37 per turn bar	Configuration	Pressure Reducing
Maximum Inlet Pressure Rating	380 bar	Actuation Type	Pressure Sensing
Cavity Size	C16-3	Maximum Operating Temperature	+400 °F
Maximum Flow Rate	40 Gal/min	Maximum Drain Flow Rate	0.94 L/min
Function	Pilot Operated	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Pressure Setting	138 bar	Adjustment Mechanism	Screw
Division	Hydraulic Systems Division	Minimum Operating Temperature	-15 °F
Maximum Tank Pressure	350 bar	Standard Setting Pressure	1000 psi
Adjustment Mechanism	Screw	Flow Rate	40 GAL/MIN, 150 L/MIN
Pressure Control Range	200-2000 PSI, 13.8-138 BAR	Seal Material	Fluorocarbon
