*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

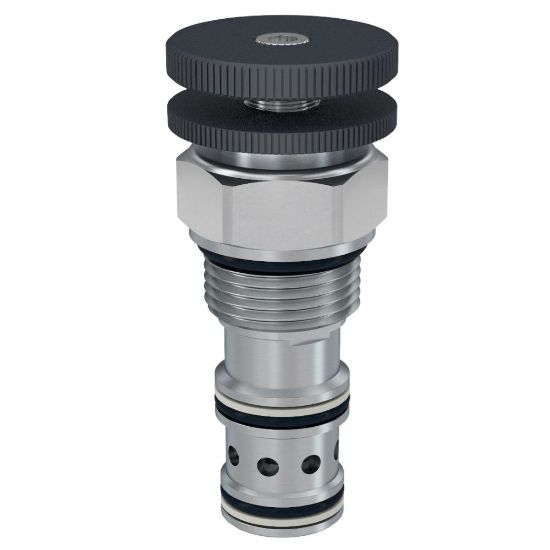

Pilot Operated Pressure Reducing Valves - PRH122K10V

Name: Pilot Operated Pressure Reducing Valves - PRH122K10V
SKU: PRH122K10V
Availability: OutOfStock

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Availability:

Backordered

SKU: PRH122K10V

Qty:

Products specifications

Attribute name	Attribute value
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Seal Material	Fluorocarbon
Valve Material	All parts steel. All operating parts hardened steel.	Actuation Type	Pressure Sensing
Pressure Control Sensitivity	23 per turn bar	Adjustment Mechanism	Knob
Configuration	Pressure Reducing	Weight	0.27 kg
Flow Rate	113.7 L/min	Cavity Size	C12-3
Maximum Drain Flow Rate	1.9 L/min	Maximum Inlet Pressure Rating	5500 psi
Function	Pilot Operated	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Standard Setting Pressure	500 psi	Maximum Flow Rate	113.7 L/min
Installation Torque	76 Nm	Maximum Pressure Setting	69 bar
Maximum Tank Pressure	350 bar	Division	Hydraulic Systems Division
Operating Temperature	-15 to +400 °F	Minimum Operating Temperature	-26 °C
Mounting Type	Screw in cartridge valve	Operation Type	Automatic
Pressure Control Range	100-1000 psi	Division	Hydraulic Cartridge Systems Division
Body Material	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+204 °C	Maximum Operating Pressure	5000 psi
Adjustment Mechanism	Knob	Pressure Control Range	100-1000 PSI, 6.9-69 BAR
Seal Material	Fluorocarbon	Flow Rate	30 GAL/MIN, 113.7 L/MIN
