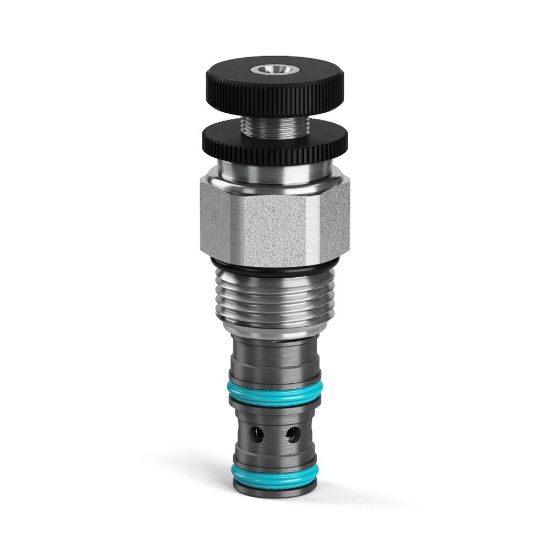

Pilot Operated Pressure Reducing Valves - PRH102K10

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Availability:	Backordered
Partner Available:	Backordered

SKU: PRH102K10

$89.25

Products specifications

Attribute name	Attribute value
Weight	0.23 kg	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	15 Gal/min	Minimum Operating Temperature	-37 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Function	Pilot Operated	Actuation Type	Pressure Sensing
Operation Type	Automatic	Adjustment Mechanism	Knob
Maximum Tank Pressure	350 bar	Seal Material	D-Ring (Standard)
Cavity Size	C10-3	Maximum Inlet Pressure Rating	380 bar
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Operating Temperature	-37 to +93 °C
Maximum Operating Temperature	+93 °C	Installation Torque	69-75 Nm
Flow Rate	56.3 L/min	Valve Material	All parts steel. All operating parts hardened steel.
Pressure Control Range	200-1000 psi	Maximum Drain Flow Rate	0.94 L/min
Maximum Pressure Setting	1000 psi	Standard Setting Pressure	34.5 bar
Configuration	Pressure Reducing	Pressure Control Sensitivity	25.4 per turn bar
Adjustment Mechanism	Knob	Seal Material	D-Ring (Standard)
Flow Rate	15 GAL/MIN, 56.3 L/MIN	Pressure Control Range	200-1000 PSI, 13.8-69 BAR
